Thursday, February 28, 2019

Early End to Contest Season

Maintenance. There's a word to strike terror into the heart of any ham. Especially when it's needed at exactly the wrong time: the middle of a brutal winter; during a badly needed DXpedition; or, a favourite contest. I now have enough maintenance to do that my contest season is pretty well over.

There are two issues that have cropped up, one that can be managed and one that cannot. The first is the TH6 tri-band yagi on the 150' tower. After repairing intermittency due to a fastener that came loose a more difficult problem appeared. It is more subtle, and also intermittent.

The TH6 has 8 traps: 4 on the driven element and 2 each on the outermost parasitic elements. The aluminum tabs that connect the trap shell (capacitor) to the element are prone to fatigue failures. All it takes is time, although that time is usually (and thankfully) many years. My antenna is old. When I refurbished it in late 2017 I paid particular attention to the traps. I could see that a few of them needed extra attention. Since my time was limited due to the oncoming winter weather I only dealt with the worst of them.

I wasn't unduly worried since I planned to bring the antenna down last summer. The traps only needed to survive 6 to 8 months. As matters transpired I was so far behind schedule that I left it up for another season. Now the antennas had to survive 20 months. It didn't.

Periodic increases in SWR and pattern distortion told the tale. Diagnosis with an antenna analyzer suggested that a trap on the outermost director was intermittent. The sign was that resonance shifted downward well below the band, in effect being pulled lower by the reflector when the suspect director trap was disconnected. I won't know for sure until it comes down.

It works most of the time (95%) so I have to hope it does work when I need it. When it doesn't I lose my best antenna on 20 meters. Fortunately I have two others: one fixed on Europe and a rotatable TH7 at 21 meters.

The second problem is more serious and has no effective workaround. At the start of the ARRL DX CW contest on 40 meters I pounced on the first European station I heard. The QSO was never completed: halfway through the XM240 went totally silent and the SWR soared.

In disgust and already feeling awful with a cold I quit the contest. There was no way to be competitive in the all band category without this antenna. I did return the next day to do a single band 20 meter effort but the damage had been done.

I suspect this is a similar problem to what happened to the TH6 in the fall: a loose fastener on the balun studs or the driven element. When the wind blows it occasionally reconnects and I can use it. But it's unreliable most of the time. It typically cuts out when transmitting, probably due to sparking.

This problem cannot be solved by climbing the tower. The feed point is 11' out along the boom and the antenna is 10' above the TH6. It will have to come down for repair. The XM240 had been slated to come down last year but as with the TH6 it was put off for a year. Now I have to wait for spring weather to arrive. That will be no sooner than April.

The XM240 balun is not especially robust. After lowering it from the smaller tower the studs on the balun spun loose from the enclosure when I reattached the elements to the boom. The braid straps to the driven element are flimsy. Again, I only wanted a few months from it and my schedule was tight so up it went with what I thought was an acceptable repair job.

There is a parable about time that seems pertinent: time isn't something you have or don't have; time is something you make. I didn't make enough time for these antennas. The bigger and higher the antenna the more important it is to get it right. Maintenance is a killer.

In the final tally you'll end up having to make more time, and suffer the consequences when you most need the antennas. I'll try to do better. As things stand my contest season is over but for occasional forays. On the positive side, I have more time to plan and build in advance of the warm weather when antenna and tower work resumes in earnest.

Monday, February 25, 2019

20 Meter 3-element Reversible Wire Yagi

Recently I was asked to design a reversible 3-element wire yagi. The constraints were a maximum height of 30' (9 meters) and inverted vee elements. Since many hams do not have towers or tall supports this antenna can provide good performance in two directions on what is the workhorse DX band. For this reason I thought to make a few changes and write it up for the blog.

Although the antenna is simple and easy to construct it requires attention to detail. Unlike single element antennas such as dipoles, verticals and delta loops a yagi relies on coupling and phasing between elements to develop its directive pattern. Care is required when measuring the wires, getting the angles right and building the coils and switching system. Mistakes will incur a cost.

Another consideration is antenna placement. Because it is fairly low there is the risk of coupling to house wiring and plumbing, metal fences, power lines and so on. A minimum spacing of 10 meters (λ/2) of these obstacles is highly recommended, especially to the front and back. More height, if you can manage it makes this easier.


The design is similar to that of a 3-element inverted vee wire yagi for 40 meters that I described several years ago. Refer to that article for aspects of design and construction that are not repeated in this one. The element spacing is 3.5 meters, for a total length of 7 meters.

The interior angle of the inverted vee elements is 90°. A larger angle will improve performance but don't try it without a redesign of the antenna since the resonant frequency of an inverted vee rises with larger interior angles. Elevation angle of the main lobe is lowered by bending a dipole into a vee since the average current height is lower. That, too, depends on the interior angle.

The elements are made from 2.5 mm (AWG 12) copper wire with 0.7 mm insulation. Thinner wire can be used since the tension doesn't need to be very high, however ohmic loss will be higher. The wire loss for the antenna as designed is approximately -0.4 db. There is ground loss as well despite the antenna apex being up almost λ/2 since the ends are much lower. Bare copper wire elements will need to be longer because the velocity factor of the insulated wire is ~2%.

Each half element (inverted vee leg) is the same length: 5.06 meters. To feed the antenna with a beta (hairpin) match the driven element legs are lengthened to 5.11 meters. Although you'd expect the driven element with a beta match to be shorter consider that the reflector element is in fact electrically longer. The beta match uses a nominal 150 Ω shorted transmission line stub at the feed point. The antenna radiation resistance is quite low at ~15 Ω mid-band. An L-network can be used instead but a beta match is simpler and lighter.

A 0.7 μH coil is placed at the centre of each parasitic element. Relays short the coil to convert the element from a reflector to a director. To allow use of the antenna without powering relays choose a preferred direction and place a SPST-NO relay at the reflector and a SPST-NC relay at the director. To reverse the yagi power both relay coils.

A larger value coil can be selected to broaden the 200 kHz 2:1 SWR bandwidth somewhat, but at the expense of gain. In my judgment the trade off is not justified. A switchable L-network at the feed point can switch the best match between the low and high ends of the 20 meter band. A tuner (ATU) can be used in the shack at the cost of additional transmission line loss. Unfortunately an antenna of this type is difficult to engineer to achieve a good match across the full band without significant performance reduction.


At the modelled height of 9 meters the elevation angle of the main lobe is 30° which is not ideal for DXing, if that is your interest. More height is needed to lower that angle. Like all yagis with 3 or more elements its performance remains stable at greater heights without the need to adjust the match or element lengths. However it will worsen at lower heights since the element ends are already only λ/4 above ground.

The free space gain of the antenna peaks at near 8 dbi high in the band, and is greater due to ground reflection as is true with any horizontally polarized antenna. Gain is quite flat across the band, increasing only 0.35 db from 14.0 MHz to 14.35 MHz. Although a 2-element yagi has peak gain only a little more than 1 db worse the gain bandwidth is quite narrow.

The F/B, though not exceptional, is quite good across the band and, again, far superior to a 2-element yagi. It peaks at close to 30 db mid-band. As is typical of yagis the frequencies of maximum gain and F/B do not coincide, and can be far apart. In this case over 150 kHz apart.

Parting thoughts

It is the rare ham who does not want more antenna performance. That is difficult to do in the urban and suburban settings where so many live. This antenna is a simple and inexpensive way to achieve performance on the ever-popular 20 meter band. It can be almost invisible to neighbours if there are trees. Trees can also serve as convenient supports.

The particular physical design described here was chosen by the intended builder. Your circumstances and needs may be different. The antenna design can be modified. However, guessing at the impact of changes to dimensions and construction materials is not recommended. Yagis require more care than that if performance is the objective. Modelling those differences is wise. A high quality antenna analyzer, and the knowledge to use it, is so valuable it can verge on being mandatory.

Spring, and therefore antenna season, is around the corner.

Wednesday, February 20, 2019

Dealing with Dits

A few weeks ago I received a preview LCR (log check report) for the recent CQ WW CW contest. There is a dreadful commonality among my LCRs for all contest: dits are my bane. Typical errors include:
  • Confusing S and H, U and V, and A and U in call signs
  • Confusing 3 and 4, and 6 and 7 in call signs and serial numbers
  • Dropped E in call signs
I know I'm not alone in making these errors yet it still bothers me. You'd think that after decades of being a primarily CW operator and operating at high speeds in contests that I'd do better. Becoming proficient at high speed CW does come easy for some, while others like myself have to work at it. True proficiency can remain elusive. The problem becomes worse when fatigue sets in after long hours in front of the rig.

I'll keep practicing.

On the other side of the QSO the LCR tells a similar tale. You may have noticed that my call sign has a lots of dits: 11 of them. When I turn up the speed the other operator can miss one or two of them. Although I love my call -- it has a nice swing on CW -- during contests I envy those with less dits and more dahs, or at least not so many dits strung together.

Very few get the VE3 prefix wrong. Yes, some do at first hear VE2 or KE3, but that may be QRM rather than operator error. The prefix is so common that it gets copied by many as a single character. Indeed that is a common technique of proficient high speed operators, that of hearing character groups or short words as a single entity.

It's almost always the suffix that is the problem. The LCR list of busted calls on the other side of the QSO is always longer than the ones I make. I am sure this reflects the difficulty of copying all those dits rather than signifying that I'm a superior CW operator! I always correct their errors when they send my call. Since they rarely do that when I'm running I may have no idea that they've made a mistake and so I can't send a correction.

The most common copying error for my call sign suffix is UN. Other common ones are KN and WN, which may be more likely due to QRN or QRM where the space between dits may be unheard. Other errors are usually call signs of active VE3 contest operators that the other operator picked out of a master call sign database as a lazy way to deal with poor copy. I correct those as well, though a few race onward without listening or caring.

Since I often have to correct the other operator's mistaken copy I created a novel message that I can send with the press of a function key. Here's what it looks like when programmed in N1MM Logger:
F7 VE3-vn,ve3 >>v n<<
The prefix is sent at normal speed, then the suffix is sent 4 wpm slower with a space added before each letter. It works very well. I thought to create the function key only last year. It saves me so much effort I wish I'd done it sooner.

At least I don't have it as bad as HH2AA, 6Y5T and many others. The varieties of error people make with their calls is startling. When they get incorrectly spotted by a human or a CW skimmer their logs fill with dupes, from operators who don't stop to think or pay attention. That happens to me too. Since a VE3 doesn't attract quite as much attention I can deal with it.

A few of these stations with dit-heavy call signs have resorted to a trick similar to the one I use, to slow down part or all of the call sign in a contest CQ. From my side of the QSO it works well, and hopefully it works for them. Otherwise the slight decrease in QSO rate would not be justified. After all, it isn't their fault that they have calls signs with so many dits.

You might think that slowing down would solve these problems. It doesn't seem to. In my experience these dit errors persist at all speeds. A few stations with dit-heavy call signs have tried this and they don't appear to stick with it. Why bother slowing down and hurting your contest score if there is so little to be gained.

I would hope that those with a lengthy LCR listing of busted calls and exchanges feel motivated to improve their skills. That's the better solution. I know that I'm still trying.

Tuesday, February 12, 2019

160 Meter 3-element Tower Yagi

Last month I listed a few of the ideas I'm considering for a better and permanent 160 meter antenna. One of those is to tune my two big towers as parasitic elements for a wire driven element centred between them, hung from a catenary rope running between the towers. It's an interesting idea with a few novel attributes. I decided to flesh out the idea into a complete model. The time came free when I found myself confined indoors with a cold.

Although this antenna may never be built the concepts it contains are useful enough to be written up. It may give readers ideas of their own. Keep in mind that while few hams have huge towers the design can be scaled to higher bands; for example, ~15 to 25 meter tall towers on 80 meters.

Antenna topology

My big towers are 60 meters apart, with a line through them that points approximately northeast and southwest. For this region that covers the two most productive directions for contests: Europe and the US midwest and southwest. A reversible 3-element vertical yagi would do wonders for contest scores and top band DXing. With the towers detuned the driven element becomes an omni-directional vertical. Unlike my 80 meter array the parasitic elements (towers) cannot be floated, only detuned on 160 meters.

To simplify the model I made both towers 43 meters tall with a capacity hat to emulate the yagis at the top. The unfinished tower will in actuality be a slightly shorter 41 meters. The capacity hat is a rough stand-in for a mast and yagis. As we will see this is not critical since the towers will be tuned to the desired resonance. The physical height is more important in setting the aperture of the element and therefore the mutual impedances between elements.

In previous models I went simpler yet by making the physical  height the estimated electrical length of the tower. Each capacity hat has 4 arms of 6 meters length and 25 mm diameter. This is a good enough analogue to ensure the shunt feed design can be adjusted to the required resonant frequency.

As with any reversible yagi the driven element should be centred. The symmetry ensures equivalent behaviour when reversed, greatly simplifying switching, tuning and matching. Optimum performance requires the driven element to be offset toward the reflector. An ambitious builder could drop two wire vertical elements from the catenary and switch between them and detune the unused wire, thus achieve slightly more gain and F/B. I will not be so ambitious in the present design.

A "boom" length of 60 meters (0.365λ) is just about ideal for optimal performance of a 3-element yagi. It is no accident that my towers are this far apart; it was not the primary reason, but it was a consideration. Since it isn't easy to move a tower once it's been planted in the ground some forethought is recommended.

Ground model

My modelling software, EZNEC, allows a few alternative ground models. Vertical antennas and arrays can be greatly simplified by eschewing radials entirely by replacing them with a resistor that connects the vertical to ground. The resistor value should be set to the estimated equivalent ground resistance.

NEC2 does not support wire connections to "real" ground. Instead we must use MININEC ground, which for purposes of calculating the near field assumes ground is a perfect ground plane: zero loss and infinite in extent. Its equivalent resistance is 0 Ω, hence the need to insert a resistor.  Generating the far field pattern relies on the specified ground parameters -- dielectric constant and conductivity -- which we certainly need, but it is not used to calculate the near field.

Real radial systems have non-zero equivalent resistance and are therefore lossy. We want the most extensive radial system we can manage to minimize loss. In a yagi the loss is higher than in a simple vertical antenna because the radiation resistance is lower, and the radiation resistance and ground resistance are in series. Achieving an equivalent resistance lower than 5 Ω requires at least 50 to 60 λ/4 radials. With 8 radials the equivalent resistance is rarely better than 15 Ω, even over very good ground quality. The more extensive the radial system the less real ground affects loss.

Perfect ground is a true non-resonant ground plane. A lesser system made of finite length wires will influence antenna resonance. This effects the tuning of the elements, which we compensate for in the tuning procedure. If you later add more radials in future the elements must be retuned. The resonance effect of radial count and length was discussed in an earlier article. That and other work the article references can guide the physical design of an effective radial system.

Shunt feed tuning

Tuning an electrically long tower can require a more complex network than a gamma match. Fortunately the towers are parasitic elements so all we need to tune for is the reactance, leaving the resistance part of the impedance to find its own level. Not that the complex impedance is without impact, only that we can work around it.

I found that a 20 meter long gamma rod of AWG 12 wire spaced 1 meter from the tower (centre-to-centre) worked well. In the model the rod is 19 meters long since it begins 1 meter above ground.

Feel free to experiment with other arrangements. I deliberately chose these 1 meter values to be equal to the segment length of all wires, thus assuring the best accuracy of NEC2 calculations. Consistent with this constraint, longer wires are all an integral number of meters, and equal to the segment count. Notice that the gamma rod is a small fraction of a wavelength from the tower, a case where it is critical to have their segments aligned.

There are loads in the tower's bottom segment (also 1 meter long) and the gamma rod's bottom segment for the equivalent ground resistance and gamma capacitor, respectively. Were the tower fed by transmission line the feed point would be at the bottom conductive spacer. We will only put a source there temporarily when tuning the element. In the model the source is centred on the spacer because it has only 1 segment.

When I need to float vertical elements in models I ordinarily lift the wire bottom off the ground. Because that is awkward with a shunt feed I instead temporarily raise the resistance to 100,000 Ω. This works very well to isolate the element from ground. When actually tuning the tower neither of these methods may work. The tower base itself may behave as an Ufer ground, and the bundle of coax and control cables are a long radial. Instead try shorting the gamma capacitor, adding a parallel capacitor or disconnecting the gamma rod. I can't make a firm recommendation until I try it myself.

Tuning the parasites

Setting the self-resonance of the parasitic elements is the remaining critical factor to making the antenna work. This is far easier to explore with a computer model than on a real antenna.

First I selected a centre frequency of 1830 kHz, which is a little high for general CW DXing but about right for contesters who typically use the range 1800 to 1880 kHz for CW. In ITU region 1 it may be desirable to raise the centre frequency since 1810 is the lowest frequency allowed. I am also not interested in SSB on 160 meter, so I am not concerned that the bandwidth is not enough to function higher in the band.

As an initial estimate of the desired tuning I chose self-resonant frequencies of 1738 kHz for the reflector and 1922 kHz for the director. These are 5% offsets which typically offer a good compromise between gain and SWR bandwidth. As we'll see my choice worked out pretty well. For this exercise I did not try and compare other offsets. If I ever consider building the antenna I may do so.

The tuning procedure for the shunt fed tower is straight-forward. The driven element and the other parasitic element are effectively floated by inserting a 100,000 Ω resistance at their bases. Calculating element currents confirmed they are negligible in the floated elements. The source is placed in the wire connecting the bottom of the gamma rod to the tower, as was described in the previous section.

The self-resonance is set by experimentally adjusting the gamma capacitor. We are looking for an impedance of R + j0 Ω; that is, self-resonance is the frequency where X = 0. The R value is not critical to the tuning of the parasitic element. The capacitor settings were 310 pf for the reflector (1738 kHz) and 227 pf for the director (1922 kHz). In a real antenna a variable capacitor can be used to tune the element. Because tuning is sensitive (~0.5 pf per 1 kHz) the capacitor shaft must be well insulated to prevent your hand from effecting the tuning. Once tuned the variable capacitor can be replaced by a fixed capacitor.

A small difficulty

With the model fully done I tested it. All was not well, though not in a totally surprising manner. The yagi's performance data were favourable, but for a centre frequency of 1880 kHz. The parasitic element shunt feed -- gamma rod and capacitor -- is doing something more than just achieving self-resonance at the assigned frequencies.

This is not the first time I've observed this behaviour. Performance bandwidth offset appears to be a feature of yagis using loaded elements. This is certainly true of short elements, and in this case it is occurring with electrically long elements. The 50 kHz offset is 2.7% of 1830 kHz, or about half of the parasitic element self-resonance offset from the intended centre frequency. That's a large error.

I increased the gamma capacitor values on both towers in tandem (and in proportion) until I found the settings that centred the yagi on 1830 kHz. These are 340 pf and 276 pf for the reflector and director, respectively. I floated the other elements to discover the new self-resonance frequencies: 1697 kHz and 1875 kHz. Although quite different their ratios are identical, as they should be.

The reason for the different offset for loaded elements requires understanding how the parasitic elements in a yagi perform their task. It is not due to their self-resonant frequencies; what matters is the phase shift, and that is determined by the element's reactance at the yagi's operating frequency.

The self resonant frequency varies with degree and type of element loading. Longstanding rules of thumb for tuning yagi elements only apply to unloaded elements. In reality the self resonant frequency is unimportant, only serving as a tuning guide. With modern high accuracy antenna analyzers with can dispense with it entirely.


Ground loss is an unavoidable feature of any vertically polarized antenna located close to ground. This goes double for a low impedance antenna like a yagi. Again, recall that the equivalent resistance of the ground loss is in series with the antenna's radiation resistance and conductor resistance. The lower the radiation resistance the greater is the proportion of the applied power that is dissipated in the loss resistances.

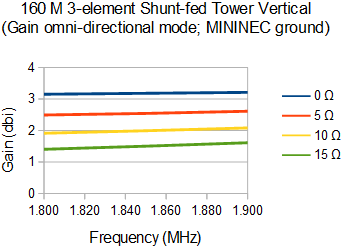

I modelled the performance over a range of resistances, from 0 Ω (perfect ground) up to 15 Ω (typically 8 to 10 λ/4 radials over medium to good ground), in steps of 5 Ω. The impact of the radial system is starkly illuminated. Getting below 5 Ω requires at least 40 radials. Depending on your ambitions it can be very good investment.

It is assumed that the radial system is identical for all 3 elements. This isn't necessary, and it can be sensible to make the radial system for the driven element better than those for the parasitic elements. Current, and therefore potential loss, is greater in the driven element than either of the parasitic elements. This was demonstrated in more detail in the design of the 80 meter 3-element vertical yagi I recently built so I won't repeat it here.

As with any 3-element yagi the gain is maximum at the top of the range while F/B is maximum lower down. Although both suffer once you pass above the frequency of maximum theoretical gain, gain rolls off sooner because radiation resistance is lowest where gain is highest.

The antenna's gain relative to a simple vertical should be considered since it is a useful comparison baseline. Gain was plotted across the same range for the same values of ground loss. Ground loss is less than for the yagi because of the higher radiation resistance. Gain gradually increases with frequency as the driven element's electrical length increases.

The array can be put in omni-directional mode to cover directions other than those available from its reversible yagi modes. This is done by floating or detuning both parasitic elements and switching in a different matching network.


The feed point resistance of the yagi is quite low, especially with a low loss radial system. A matching network is required to convert the impedance to 50 Ω. I designed a simple L-network using TLW and inserted that into the EZNEC model. The following SWR plot was done for a 5 Ω equivalent ground loss radial system for all elements.

The 2:1 SWR bandwidth is 60 kHz. I targetted 1835 kHz for the best match hoping to achieve the best result. Raising it a little higher may be better. Notice how fast the SWR rises on the high end where gain is maximum and radiation resistance is lowest.

A broader SWR bandwidth can be had with a smaller radial system because its higher loss sums with the radiation resistance to proportionately reduce variation of radiation resistance and reactance across the band. That is a poor reason to skimp on the radials! Better to use a switchable matching network to eke more bandwidth on the high end of the range.

Details of the matching network are not described since every installation will be different and the tools to design networks are readily available. I recommend building the antenna, tuning it and then measure the impedance across the band. The matching network should be designed to achieve the lowest SWR curve across the desired operating range.

Further thoughts

With an excellent radial system this antenna has 5 to 6 db advantage over a simple full-size vertical. That's a lot on top band. It will easily improve contest and DX results. But is it worth it? After all, this is no small antenna: it's big, ugly and expensive. If you already have or are planning some big towers it is certainly worth a look.

This antenna only has two directions and we ideally want four (the pattern isn't sharp). The most economical way to add those is with T-top sloping verticals wires supported from the same catenary rope supporting the driven element. These are similar to those in my 80 meter vertical yagi, just like in the original K3LR 160 meter array you can find in ON4UN's Low Band DXing book. Additional mechanical support for the catenary and stronger wire for the additional elements may be needed.

There does remain a concern of interactions with antennas on the tower which could place significant energy into receivers using those antennas. Band pass filters are mandatory. Alternatively the towers can be left as is by dropping wires from the catenary for the parasitic elements. Coupling with the tower and cables will still occur but that may be more managable by, for example, detuning the tower and bonding coax and shielded cables to the tower at several points, or by running them inside the tower. Any coupling that does occur will influence the tuning procedure to a degree that the presented design does not address -- a simple model I built proved to be challenging in this regard, but was not conclusive. Correct tuning may have to be experimentally determined.

In all cases this antenna will require a switching system and control cables to allow direction and mode selection from the shack. There is ample material in the ON4UN book on how to go about it. After the switching system for my 80 meter vertical yagi is completed and in service I'll describe it in the blog and that can be used as a template for the 160 meter yagi.

I'd really like better performance on top band but I cannot realistically assign it more than very low priority. This was an interesting thought experiment that will be filed away. Who knows what the future will bring.

Wednesday, February 6, 2019

2019: Year of the Yagi

Waiting for spring
It's that time of year to look ahead and make my plans for the 2019 station construction season. I've made a habit of doing this every year, and you'll find a similar article about this time of year in the blog's archives. They are also among the least interesting for readers. However this blog is about more than engaging readers at all times; it is a tool for keeping myself honest.

Despite the inward focus it can still be of use to others who could benefit from doing the same, and then measuring their progress at the end of the year. The comparison can be both sobering and instructive.

My ultimate objective is a moderately competitive contest station suitable for both single op and multi op, while also fueling my daily operating habits of DXing and experimenting with new technology and operating aids. It is not intended to be a lifelong project. With some effort the bulk of the "heavy lifting" will be completed in 2019 or early 2020. Since there will be non-radio summertime activities I may not fulfill my entire plan. But it is important to have objectives and a plan to get there.

After failing to fully achieve my 2018 ambitions I remain cautiously optimistic that I can do better in 2019. The major construction project -- a 140' tower -- is more than half raised, and should be complete in early spring. The only substantial mechanical decision to be made with respect to the new tower is whether to go with a conventional heavy-duty rotator or to use my spare prop pitch motor. Construction of the mast and drive system must be complete before the top two tower sections leave the ground.

With that out of the way I can turn my attention to antennas, and antennas means yagis big and small. Indeed, that is the focus of my plan for 2019.

Building yagis

As with most everything in our stations we have a choice between build and buy. Buying can be new or used. Time is limited and none of us can build everything in a large station. I pick my places. One of those places is antenna.

I have booms built for one each of long boom yagis for 20 and 15 meters, and I have most of the material on hand to build identical copies of each. These 4 yagis are slated for the new 140' tower (40 m, more precisely) on these all important contest bands. The lower yagis will be fixed northeast, towards Europe.

Aluminum tubing is available in abundance from just about every industrial metal dealer. The trouble comes when specifying the alloy and the less popular sizes suitable for telescoping elements. For example, one outlet that claims to sell most everything in any length does not actually do so. Alloys are mostly the weaker non-structural and the selection of wall thicknesses and outer diameters is incomplete. Another outlet carries more suitable tubing but only in full 20' and 24' lengths and charges quite a lot for cutting. I would have to cut tubes in their parking lot to fit them in my car!

Another difficulty is acquiring 0.058" wall tubing in Canada. This is classed as aerospace tubing and has a limited market. I am revising mechanical designs and about to begin machining experiments to see what I can do with common 0.065" wall tubing. The rest I will import from the US.

Boom-to-element brackets are another area of concern. Although straight-forward to design and build it is the fasteners that are expensive. Each alone isn't, but I will require a large quantity.

I am searching for good quality and reasonably prices products which, again, will have to be imported from the US. Importing from the US ought to be simple but often isn't since many dealers do not specialize in international sales and can incur substantial brokerage fees. There are alternatives to get around the problem.

Once construction of the yagis is fully underway I will surely devote a few articles to the subject. Compared to many of the components of a large station yagis are relatively simple things. It's the details that can bog you down.


With mono-band yagis for the high bands I will have surplus tri-band yagis, all Hy-Gain: TH6, TH7 and Explorer 14. I will likely sell the latter and probably the same for the TH7. I would then find another TH6 and stack them on one of the towers, possibly rotatable through 120°. I would use these at a lower height to cover the US and Caribbean, without risking interactions with the mono-band yagis higher up.

Side mounting these yagis is, in part, why I will replace the TH7 with a TH6. On the TH7 the dual driven elements can easily strike the tower when rotated. Further, the electrical design of the TH7 is not optimal for the CW band segments on 20, 15 and 10 meters. I don't want to mess around redesigning the antenna to do better on CW. The gain and performance is acceptable but not the SWR.

Although not the best antennas these large tri-banders will take a lot of the operating burden from their mono-band cousins, allowing instant switching between directions and still have a powerful signal wherever I need it. It's also far cheaper than alternative but will likely need to be refurbished. Getting the TH6 down from the big tower is necessary no matter what because one of the traps is exhibiting intermittent continuity.

80 meters

My vertical yagi project has been proceeding slowly. So slowly that it's almost been standing still. I further delayed working on the switching system due to the deep snow and cold temperatures. Now that the hours of sunlight are increasing and warmer weather approaches I intend to get going on it.

80m vertical yagi switching system - some assembly required

Ideally it would be ready in time for the upcoming ARRL DX CW weekend, but that is unlikely. I'll leave it fixed on Europe as I did in CQ WW CW. I configure it that way except for Pacific area DXpeditions and North American contests.

The 80 meter vertical yagi should be completed before the warm weather when my attention will shift to other projects.

40 meters

When the TH7 comes off the 21 meter tower (70') my plan is to replace it with the XM240. This would become my short path rotatable yagi for this important contest band, covering the US and more. But before it comes down from its current position at 46 meters (150') on the big tower I need to replace it with another 40 meter yagi.

Therein lies what is perhaps my biggest roadblock this year. I want to build and raise a full size 3-element yagi to go on that tower. That's a large enough project that it may be impossible to manage this year considering everything else that needs to be done. Indeed this antenna is why the prop pitch was installed on that tower.

It's entirely possible that there will be nothing up there in the fall. That is, if I can build a wire yagi pointed at Europe between the two big towers. That way I would not have a unbridgable gap in my 40 meter capability. Alternatively I could purchase another XM240 or similar yagi as a stop gap measure for the next year or two. Should the opportunity arise I may go for it.

10 meters

This is the least of my worries. I do plan stacked yagis for 10 meters on the 40 meter tower, with one 6-element yagi on top of the mast above the planned 40 meter yagi (where the XM240 is currently situated), and one or two more lower down fixed on Europe but preferably rotatable.

With the sunspots not reappearing to boost 10 meter propagation until 2021 this project will be fit in as time is available, after the other projects are completed.

6 meters

No changes are planned this year. The redesigned A50-6 at 24 meters will be my antenna for this year's sporadic E season. The only change will be the transmission line so that I can recover most of the estimated 3 to 4 db loss in the very old run of RG213 I've been using until now. The reason I've delayed replacing it is to save the Heliax I have for runs to and up the big towers.

If that supply problem is not resolved by April I will install a run of LMR400 up the tower from the antenna switch at the bottom. With the recent rewiring the run from there into the shack is a combination of LDF5 Heliax and LMR400, which is good enough for now.

In future years I would like more gain on 6 meters. This would either be accomplished with a longer boom yagi or a stack of two yagis. They will likely require a new tower. I have some thinking to do.

160 meters

I covered my options in a recent article. As a minimum I will replace the current antenna with full height wire vertical and at least double the current 8 radials. Every decibel I can scrape out of a simple and temporary antenna will pay big dividends. This was emphasized by the difficulty I encountered during the recent CQ 160 meter CW contest when marginal conditions kept a large number of QSOs and multipliers just out of reach. I don't want that to happen again.

Longer term I do want to exploit the towers to achieve gain on top band. I have been running models to explore alternative ways to corral them into either a vertical yagi or phased array. In addition to computer models I would need to experiment to ensure using the towers will not cause serious coupling into the tower mounted yagis, and from into the station. It is a solvable problem.

Receive antennas

The short west Beverage is a stopgap until I improve my low band receive capability. At the least I plan to twin the existing northeast Beverage to make it reversible. A north-south reversible Beverage is also likely. These projects could be put off because they are not mandatory until I run high power and attract many weaker stations. It is also not absolutely needed for 80 meters since the vertical yagi has very good directivity. Receive antennas are primarily needed for 160 meters.

A vertical phased array remains a possibility, if only to simplify maintenance and eke out the best directivity and selection of directions. I have not decided. The small number of planned Beverages will prove adequate until the rest of the station is complete. More receive options raises the possibility of diversity reception, which is a powerful technique for copying weak signals.

In the shack

As I demonstrated last month it is possible to do SO2R and multi-op with no automation or filters, for low power contesting. When I acquire an amplifier that must change. I have been putting off this work until it becomes unavoidable. There is also the prospect of more antennas which will exceed the capacity of my current switching system. When my 2019 tower and antenna plan comes to fruition there will be no more putting off the inevitable.

Automated selection of filters and antennas from two operating positions will be needed by the fall contest season. That will be quite a challenge since much of it will need to customized, a hybrid with commercial equipment. The filters will be bought and the switching system designed and developed by me.

I would like to arrange the first multi-op sometime during the next contest season. Station automation is required since it may be too much to ask others to figure out the unique manual control systems I currently employ. Physical rearrangement of the shack will also be necessary so that two people can comfortably operate together. Of all my challenges this will be the easiest to accomplish.

Transceivers are going to change. I expect to sell both the KX3 and FT950. The FTdx5000MP will remain for one operating position and the other will be a K3 or similar high end transceiver. I will still be able to operate QRP by turning the power down to 5 watts (but not on the 5000 which has a minimum power of 10 watts). Although the KX3 is a wonderful rig I am becoming increasingly frustrated by its limitations; it is not suitable as a high performance base station rig.

For competitive use the FT950's DSP filtering is too noisy and rings and the receive audio is noisy. It has been surpassed by subsequent generations of equipment. I have kept it around to experiment with SO2R and as a backup for the main transceiver.

As with previous years my 2019 plan is ambitious. I have set my objectives and now must do my best to achieve them. That I will probably fall short does not deter me from aiming high.


Google has not only abandoned Blogger development they are also in the process of shutting down Google+. The latter is not of concern to me other than it will mess up reader comments and possibly some lesser things. I won't know until it happens. Anonymous comments unfortunately remain prohibited because every time I allow them there is a flood of spam. I apologize for the inconvenience. It's because of this problem that comments are moderated.

As many have discovered, direct email is the best way to reach me. Those I reply to. Comments on articles are routinely approved although I might not reply to those. Blogger may eventually become unusable and I'll have to find a new home. That would be an unwelcome burden and could kill the blog. But for now it's business as usual.
