Possibilities of Moxon Yagis

I bought and read the book HF Antennas for All Locations by Les Moxon, G6XN, over 30 years ago. I learned a lot from it but never put any of the ideas into practice. (Well, except for one time which I'll come to at the end of this article.) I must admit that I did not fully appreciate what I did read because my knowledge of antenna fundamentals was relatively poor at the time. With my interest in getting gain on 40 meters from a simple antenna I decided to have another look.

I was especially taken by the steps taken by others to exploit his work to design rotatable and fixed 2-element yagis on 40 that claim to perform favourably in comparison to other 2-element designs. Not everyone agrees. All of this was enough to grab my interest now that the weather has turned wintery and I am mostly restricted to planning for the future.

Some computer modelling is called for to investigate the matter further. There is enough conflicting information to be found in publications, including on the internet, that it becomes impossible to believe everything I read. This is not about incompetence or exaggeration on the part of others (many of whom are more skilled at this than I am). It is just that suitably comparably modelling is often lacking, or at least are not explained well. We are after all amateurs! A little bit of personal investigation can help to resolve the difficulty and set my mind at ease, and perhaps point the way to other antenna designs that are attractive.

The basic idea

The basic idea behind Moxon's strategy to improve yagi design is founded on the following sequence of ideas, which is my paraphrasing of what he has written:
  • A yagi is a subtractive array that primarily achieves gain by cancellation of fields in unwanted directions. Since conservation of energy applies field reduction is one direction must show up as gain in another direction.
  • Maximum cancellation, and therefore the best prospects (not a guarantee) for gain, requires equal amplitude and opposite phase. Although this is impossible to achieve over a broad range of directions with a 2-element yagi (in fact, only in one or a few points) it can be improved. Conventional yagis with parallel elements cannot achieve equal currents with element configurations that perform well in other respects.
  • If the mutual coupling can be increased without reducing element spacing it should be possible to get improved results. Therefore turn the ends of the elements towards each other to increase coupling. Then tune the antenna for best results.
Before jumping into quantitative measures the above set of EZNEC current plots for an ordinary 2-element yagi (full-size wire elements) and a Moxon rectangle (adapted from a model by DF9CY) get across the basic idea. The current in the driven element is higher than the current in parasitic element (a reflector in the present case). The currents on both yagi types vary with frequency, but they vary less and remain more equal for the Moxon.

Current equalization and less variation with frequency means that the Moxon is able to improve F/B bandwidth. As we have seen before a conventional 2-element yagi does develop effective gain and F/B figures, though typically only over a narrow frequency range in comparison to yagis with 3 or more elements. There are good analytical discussions of yagis designs by W2PV (to pick a venerable example) and others, which I do not need to get into.

Conventional commercial yagis must be built to handle higher driven element current, or to advertise lower power rating. For example, the 15 meters traps on Hy-Gain tri-band yagis are different on the driven element. The higher antenna (and circulating) current is dealt with by winding that one trap coil with copper rather than the aluminum used in all other traps (same wire gauge). Otherwise there is a risk of excess heating at legal limit power.

Comparison of the Moxon and standard yagis

We'll use the same EZNEC models shown above. Both are constructed from 12 AWG copper wire, which results in a loss of about -0.3 db in both cases. This is negligible in the majority of applications. Rotatable yagis made from aluminum tubing have lower loss.

The models are in free space to remove the small skewing of results due to the presence of ground. Since the effect of ground is nearly identical for these antennas this is a good approach.

The difference in F/B is the obvious feature of the performance comparison. It is much higher across the band. Although higher peak F/B can be had with a 2-element yagi (different boom length) that does not alter the results by much.

Gain is less favourable for the Moxon which is 0.5 to 0.6 db lower than the yagi. Plotted current is that of the reflector element referenced to a source current of 10 A.

The Moxon is a Moxon rectangle, which is sensitive with respect to a few parameters:
  • Element spacing, along the "boom"
  • Element tip separation
  • Ratio of centre segment to tip segments
  • Wire (or tubing) diameter
The yagi has fewer parameters, with performance mostly related to element separation and wire (tubing) diameter. The Moxon model has element spacing of 0.13λ, centre to tip ratio of 5.4 and 36 cm tip separation. The yagi has an element separation of 0.14λ. Other parameter choices will change antenna performance. Even so the key distinctions would remain. However do keep in mind that the element tip separation in a Moxon is critical, such that a small change can have a larger than expected effect on performance.

As mentioned earlier, both use 12 AWG wire, insulated wire in the case of the yagi. If made from tubing the SWR bandwidth would increase, although that is only of advantage to the narrow-band yagi.

SWR (not shown in the plot) favours the Moxon. The Moxon achieves an SWR below 2 across the band with a direct feed with 50 Ω coax. The yagi requires a matching network (beta, λ/4 transformer, 2:1 balun, etc.) and does not match as well across 40 meters.

Tuning for Gain and F/B

In both antennas the frequency of maximum gain is close to that of maximum reflector current. Indeed the shape of the current and gain curves are similar across the band. I took the plot down to 6.9 MHz to where the current reached a maximum for the yagi. Both antennas can be tuned to shift performance higher in the band. SSB operators may prefer to make the parasite a director in order to reverse the performance curves.

Before doing the modelling I guessed that the F/B would peak where the currents peak. This is not the case. I was perhaps misled by focussing on the precise reverse direction rather than the total field outside the main lobe.

The patterns are plotted at the same frequency (in this case, where the F/B is highest on the Moxon) so that the gains are fairly compared; the yagi has maximum F/B 40 kHz higher than the Moxon. You can see from whence the yagi gets its gain with respect to the Moxon rectangle. Although the radiation off the forward lobe of the Moxon is much less than the yagi its forward lobe is wider and shallower. There's no free lunch when it comes to antennas.

Gain in the Moxon is somewhat reduced by the length of the tips, and F/B in the yagi is reduced by moderate element coupling. Although the amount of current in the Moxon element tips is low it is still high enough to account for much, if not all of the gain difference.

The intensity of the radiation of an antenna is in rough proportion to the product of element length and average current over that length. Moxon himself points this out, and finds that the trade-off is beneficial. I suspect he is largely correct with respect to what most hams want. On 40 meters especially since most who do have a 2-element yagi choose one with loaded elements and so are therefore prepared to give up the small gain difference possible with full-length elements.

Where F/B and SWR are important to an individual case the advantage becomes greater on the low bands, where the width of the band is high in relation to frequency. There is less advantage on 20 meters and above where mostly-good SWR performance can be achieved across the band with a 2-element yagi. Then it's a matter of F/B. Even there it may come down to choosing a 3-element yagi which has better SWR, gain and F/B performance. Going with a larger yagi is less challenging on the high bands.

Considering all of the above, which antenna's performance do you prefer? There is no right answer, just a matter of personal preference. My own priority is gain, with match and F/B of lesser importance if I cannot get all three. However, I suspect most hams would rather sacrifice 0.5 db of gain to get a broadband match and F/B.

High mutual coupling in other antennas

It is not only the Moxon rectangle that exhibits improved current balance and therefore improved match and F/B. We've seen examples before in this blog.
  • Spiderbeam: Although the elements are vee-shaped there is substantial element coupling from bringing the parasite tips close to the driven element. Notice that the F/B and SWR bandwidth are excellent and the gain is less than a full-size or trap yagi. Gain can be improved with a trade-off in the match. The manufacturer correctly notes that performance will suffer if measurements are not closely followed since, as already mention, element tip separation is critical to performance.
  • 2-element diamond vee: When I built a version of this antenna over 25 years ago (late 1980s) I had Moxon element coupling in mind. At the time I had read somewhere that this design (no unlike the more recent Spiderbeam) can work very well. The antenna did work well although I had no means to measure gain or even to do a proper comparison against a reference. What I do remember well was the excellent F/B when I switched between northeast and southwest directions. I now know that the tip separation was probably not optimally chosen. Both in free space and over ground the modelled diamond vee yagi has less gain than the two antennas discussed in this article. The diamond vee antenna in any case will do worse than a fully-horizontal antenna over real ground.
The W6NL 2-element rotatable 40 meters yagi (either in its pure form or as a modified XM-240) has some advantages. I've made my own EZNEC model of the this antenna to better understand it. You can also check out W8WWV's model analysis if you are interested. I will probably say more about this one in future. It is certainly distinctive in its use of oversized capacity hats to achieve high element coupling.

Where am I going with this?

I'm not sure. Although there are advantages with respect to F/B and SWR bandwidth I have yet to discover a model that achieves better gain than a more conventional 2-element yagi, both in maximum gain and gain bandwidth. That reduces my level of interest, even if many others would disagree. Perhaps I am being overly focussed on losing 0.5 db of gain. That is at least true for 2-element designs; 3 or more elements present additional opportunities for investigation.

Another difficulty is making a version of the Moxon rectangle reversible. This is worth some attention. It might be a superior alternative to one of the 2-element switchable wire yagis I designed in 2013. I see some possibilities to be explored.

So I'll do some modelling of alternative designs and share the results. I think it's a good idea to further my understanding of these antennas and not prematurely dismiss them. I have the luxury of time since none of these antennas will go up at my station in the near future.

Monday, November 17, 2014

Antenna Season Wrap-up

We've had our first snowstorm of the winter. It's more a symbolic event since the snowfall amount is small. Real storms are sure to follow over the coming weeks.

I rushed to finish work on the tower this weekend in advance of the foul weather. This included removing the 40 meters sloper, re-establishing the 80 meters half sloper, cable dressing and other weather-proofing. I have now pretty much brought to a close the 2014 antenna season at VE3VN.

Looking back it's almost surprising how much I got done this year. I know it cost me a lot of time even though it doesn't feel that way. Highlights follow. You can compare these to the plans I made at the beginning of the year.
  • Removal of the house-bracketed antenna mast, multi-band inverted vee, 30' tower, multi-band dipole and 40 meters delta loop
  • Bracket the 30' tower to the house and installed a new antenna mast to 14 meters height
  • Purchase, prepare and install the DMX-52 guyed tower
  • Reconfigure the multi-band inverted vee to include 40 meters, make mechanical improvements and raise it on the house-bracketed tower and mast
  • Refurbish a Ham-M rotator and mast bearing, and install them on the DMX-52
  • Purchase and install an Explorer 14 tri-band yagi at 15 meters height
  • Design, build and install a loaded half sloper for 80 meters
  • Design, build, install and ultimately remove a loaded sloper for 40 meters
While the contesters are away the mice will play

As a contester I suppose I ought to have participated in Sweepstakes SSB this past weekend. I opted not to since SSB QRP is pretty tough, despite how good my results were in CQ WW two weeks earlier. I did however scan the bands to be sure my section (ONE) was well represented. I could see that I wasn't needed.

While the contesters were busy there was some DX to be had for the taking on CW. That is, until the high geomagnetic activity ruined propagation. I was able to quickly work 3B9HA on 40 CW since the pile-up was so small. This again demonstrates that QRP and a bit of wire can do wonders, if everyone else stays away! After the storms hit I found VU4KV on 20 meters CW, but they were far too weak for me to work. It was interesting that their signal peaked to the northwest rather than the direct route just east of north. This is an excellent example of skew path propagation, going around rather than through the auroral zone.

Winter antenna work

Doing antenna and tower work during our cold winter is possible if unpleasant. It's something you get used to when you live in this climate. When I was young and living in an even colder climate (VE4) it was enough that on a Saturday or Sunday the temperature rose above -10° C, was sunny and not windy. That type of winter day was rare, so we made use of them.

Winter tower climbing was rarely used for new construction. More often it was to perform repairs in advance of contests. Careful planning is essential when doing this type of work so that the absolute minimum amount of time is spent outside and on the tower.

Once your hands or feet start going numb you have been up there too long. Some dexterity in the extremities is needed to get down safely. It isn't always possible to dress as warmly as you'd like since all that movement-impairing clothes is a safety hazard. It's easier now with lightweight and thin synthetics. Then there's the detail work that requires bare hands.

We usually did the work in stages, warming up at intervals. It helped that our towers back then were rarely over 15 meters height, allowing for rapid ascents and descents. Once in Ottawa I found that winter tower work became easier due to the warmer temperatures. It was just necessary to get used to doing with dull, overcast skies. I've even done work as high as 100' while it was snowing. With snow the biggest problems are getting wet and cold from snow melt and slippery footing. Towers with horizontal cross-braces are much safer than those with diagonal braces (DMX and Trylon).

Perhaps the biggest problem with winter tower work is wind. If you live in a warm climate you may be unfamiliar how deadly even a moderate breeze can be when the temperate dips below -10° C. The 20 kph breeze I had to deal with this weekend quickly stole away heat during the 10 or 15 minutes I was atop my tower this weekend despite being well dressed and the temperate at a relatively balmy 0° C. It was also snowing, making the tower a bit slippery. I adjusted by using a slower and safer climbing technique.

The blog in winter

Although I will not be building new antennas over the winter the blog will not be quiet. There is operating, equipment and, very importantly, software modelling of new antennas and old. There is a lot on my mind that I want to work through, the interesting bits of which I'll share.

There will be some focus on bigger antennas and low-band antennas that may play a part in the coming years. Forward planning is always a good idea, whether or not I act on those plans. At the least I can offer useful ideas to those of you who follow along.

Friday, November 14, 2014

40 Meters Loaded Sloper

Earlier this week I had the opportunity to exploit unseasonably warm weather to climb the tower (several times) and install the newly-constructed loaded half sloper for 40 meters. My intention is an antenna that will outperform the 40 meters inverted vee to Europe, my most productive DX and contest points path. This article will cover antenna modelling, construction and on-the-air performance.

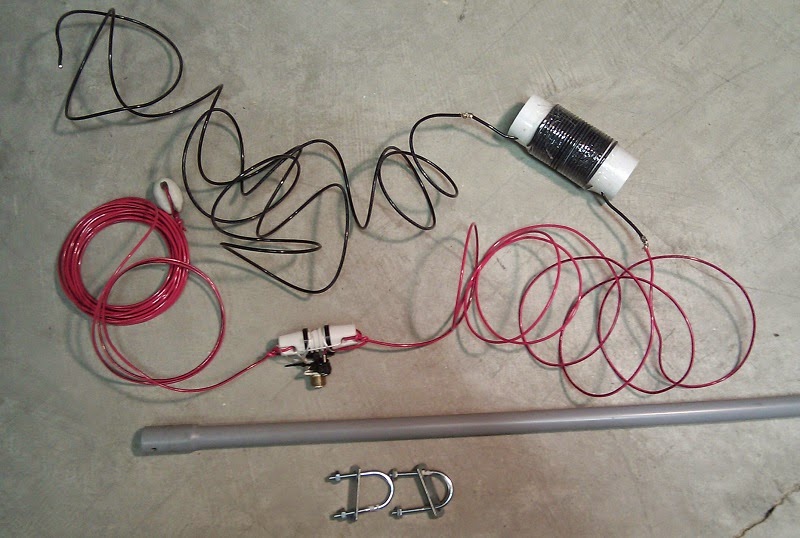

Here it is fully built, ready for installation on the 14 meters tall tower:
